MX Series Disc Brake Caliper | Twiflex

The Twiflex MX13, MX25, MX30 and MX40 series of disc brake calipers is suitable for use with discs of 12.7mm, 25.4mm, 30mm and 40mm thick respectively. The SMX caliper is only suitable for use with discs 12.7mm thick. Minimum disc diameter is 300mm.

The MX/SMX calipers may be used with any of the Twiflex series of thrusters and feature a patented link mechanism to ensure uniform pad wear.

Normally one or two calipers are used per disc, but the number may be increased depending on disc size. The brakes may be positioned at any angle around the periphery of the disc, but should ideally be mounted horizontally (i.e. at the 3 o’clock or 9 o’clock position). If the caliper mounting angle is greater than 10° from the horizontal, or on vertical shaft applications, it should be fitted with an inclined mounting kit or equalizing link. A range of brake discs is available from Twiflex (see Disc and Hub Assemblies).

For pneumatic operation use dry, filtered and non-lubricated compressed air. Pneumatic brakes require a control valve, operated either manually or by pneumatic or electrical signal.

The ratings shown on the graphs are based on fully bedded in and conditioned brake pads with a nominal friction coefficient μ = 0.4. Twiflex disc brakes must be used with Twiflex asbestos free brake pads.

Effective disc radius = actual radius (m) – 0.033m.

Product Data Sheets

  • MX13 25 30 & 40 Disc Brake Caliper
  • MXA Disc Brake Caliper
  • MXB Disc Brake Caliper
  • MXD Disc Brake Caliper
  • MXG Disc Brake Caliper
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Industrial Disc Brakes

Related Literature

  •  TwiflexLine Card
  • Heavy Duty & Overrunning Clutch Brake Group Overview
  • HDOCB Engineering Capabilities

Product News

Contact Info

Twiflex
9 Briar Road, Twickenham
Middlesex TW2 6RB – England
Phone: +44 (0) 20 8894 1161
Fax: +44 (0) 20 8755 5601
Email: info@twiflex.com
www.twiflex.com

Twiflex (USA)
2800 Fisher Road
Wichita Falls, TX 76302
Toll Free: 844-723-3483
Phone: 940-723-3483
Fax: 940-723-3436
Email: twiflex.info@twiflex.com
www.twiflex.com

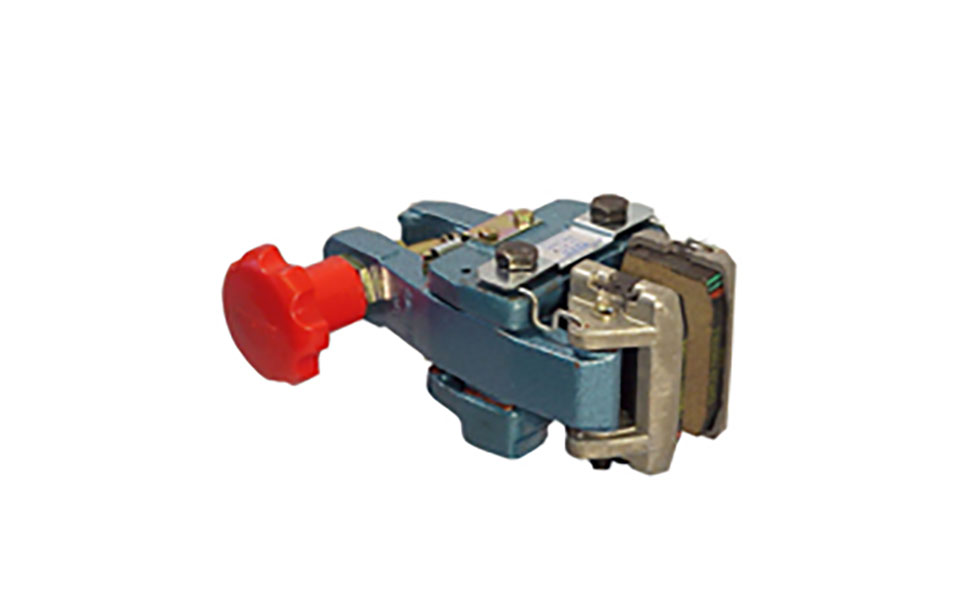

Twiflex MX Direct Acting Disc Brake Caliper
