MS Series Disc Brake Caliper | Twiflex

The Twiflex MS series of disc brake calipers is suitable for use with a disc thickness of 12.7mm. Minimum disc diameter is 250mm.

Normally one or two calipers are used per disc, mounted horizontally (i.e. at the 3 o’clock or 9 o’clock position) to prevent rubbing of one brake pad due to self-weight of the thruster. A range of brake discs is available from Twiflex (see Disc and Hub Assemblies).

For pneumatic operation use dry, filtered and non-lubricated compressed air. Pneumatic brakes require a control valve, operated either manually or by pneumatic or electrical signal.

The ratings shown on the graphs are based on fully bedded in and conditioned brake pads with a nominal friction coefficient μ = 0.4. Twiflex disc brakes must be used with Twiflex asbestos free brake pads.

Effective disc radius = actual radius (m) – 0.03m.

Product Data Sheets

  • MS Disc Brake Caliper
  • MSK Disc Brake Caliper
  • MSL Disc Brake Caliper
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Industrial Disc Brakes

Related Literature

  •  TwiflexLine Card

Product News

Contact Info

Twiflex
9 Briar Road, Twickenham
Middlesex TW2 6RB – England
Phone: +44 (0) 20 8894 1161
Fax: +44 (0) 20 8755 5601
Email: info@twiflex.com
www.twiflex.com

Twiflex (USA)
2800 Fisher Road
Wichita Falls, TX 76302
Toll Free: 844-723-3483
Phone: 940-723-3483
Fax: 940-723-3436
Email: twiflex.info@twiflex.com
www.twiflex.com

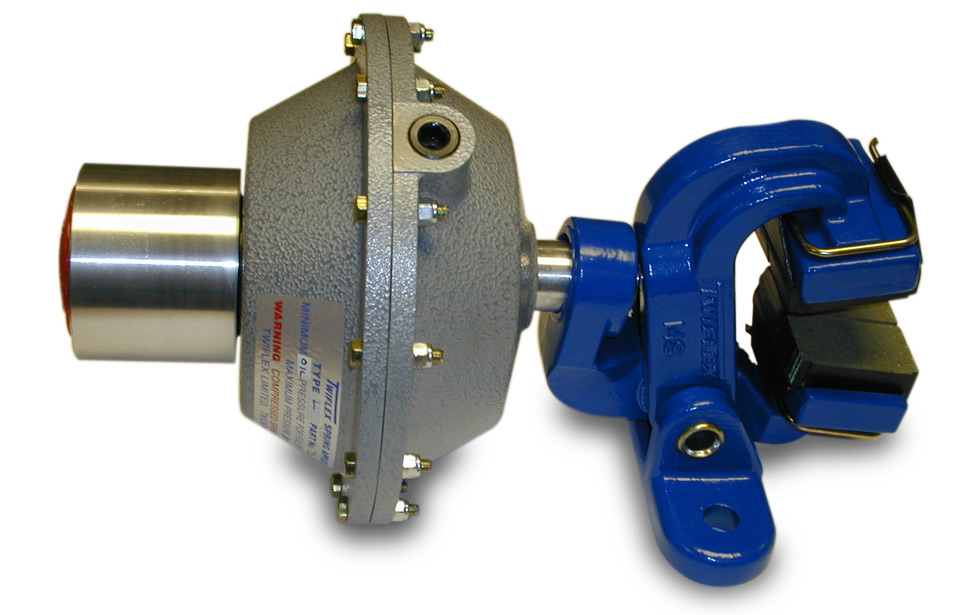

Twiflex MS Series Spring Applied Calipers
